1pcs BK3254 Module 4.1 F6888 Stereo Audio Module - Asia Sell

  • $9.75
Tax included. See the Shipping Rates Table. Calculated at checkout (combined weight and service dependant). Free shipping for orders over $50.
0 in stock This item is yet to be reordered. You are welcome to place an order and we will order more right away. You can click the bell at bottom left to be notified when the item is back in stock.

DESCRIPTION

  • 1 piece.
  • The F-6888 module is an intelligent wireless audio data transmission product developed independently by our company. It is a low-cost and cost-effective stereo wireless transmission solution. The module adopts the BEKEN BK3254 chip QFN48 package design.
  • The module is mainly used for short distance music transmission, can be easily and notebook computers, mobile phones, PDA and other digital products, devices connected to achieve the wireless music transmission.

Notes

  • The default is the universal version, only the function;
  • Does not support intelligent voice prompts and reporting capabilities;
  • Does not support TF card playback function;
  • Does not support mobile U disk playback function;
  • Does not support internal LINE-IN;
  • Does not support internal FM radioandUART

Profiles

  • V4.1 specification support
  • A2DPv1.2
  • AVRCPv1.5
  • HFPv1.5
  • 1.2

Applications

  • audio
  • stereo headset
  • hands-free phone
  • wireless transmission of audio

Parameters

  • Model: F-6888V1.2
  • specification: V4.1
  • Working voltage: DC 3.3~4.2v
  • Support for protocol:HFPV1.5,A2DPV1.2,AVRCPV1.5,1.2
  • Working current: <=45mA
  • Standby current: <500uA
  • Temperate range: - 40 to 80 celcius
  • Wireless tracsmission range: longger than 10 meters
  • Transmissiong power: class 2.4dbm
  • Sensitivity: 0.1% BER> - 80 dBm
  • Frequency range: 2.402GHz ~ 2.480GHz
  • External interface: I2C,SPIAND UART interface
  • Audio signal to noise ratio: > = 75 dB
  • Audio performance: SBC decoding

Module Size

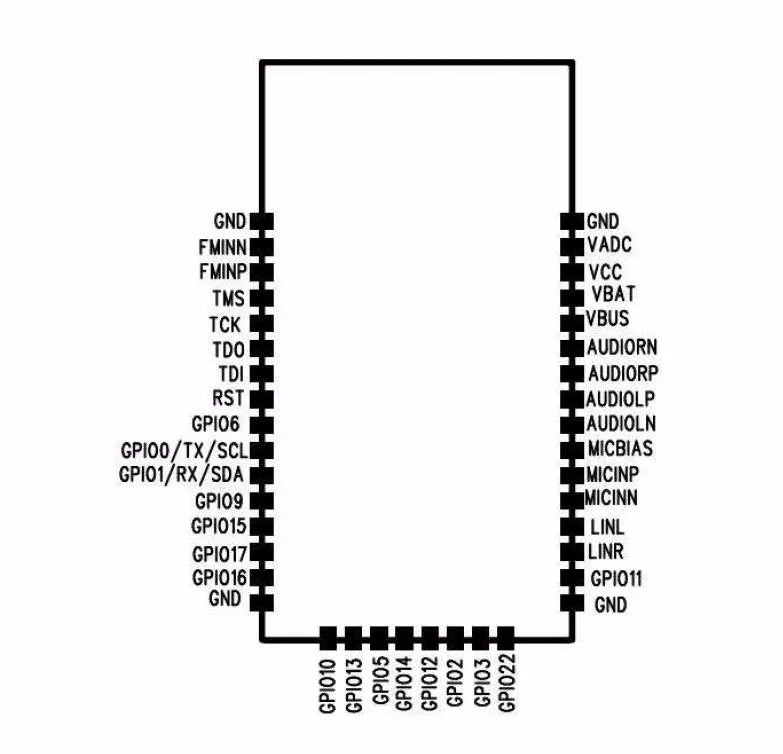

Pin Diagram

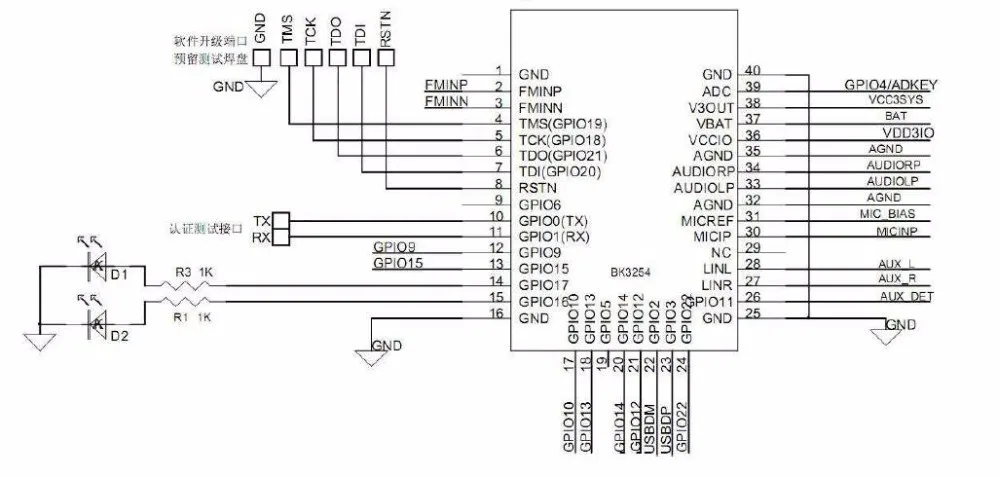

Typical Application Circuit
