3S 40A BMS Lithium Battery Protection Enhanced 18650 Li-ion Charger 11.1V 12.6V

3S 40A BMS Lithium Battery Protection Enhanced 18650 Li-ion Charger 11.1V 12.6V

CHAR1062Bz59u1p5

$16.20 AUD
$15.90 AUD $16.20 AUD
PRICE REDUCED Sold out
Tax included. Shipping calculated at checkout.

The product description and related items are below the Add to cart and Buy it now buttons.

Color

Low stock: 1 left
  • 1 Piece.

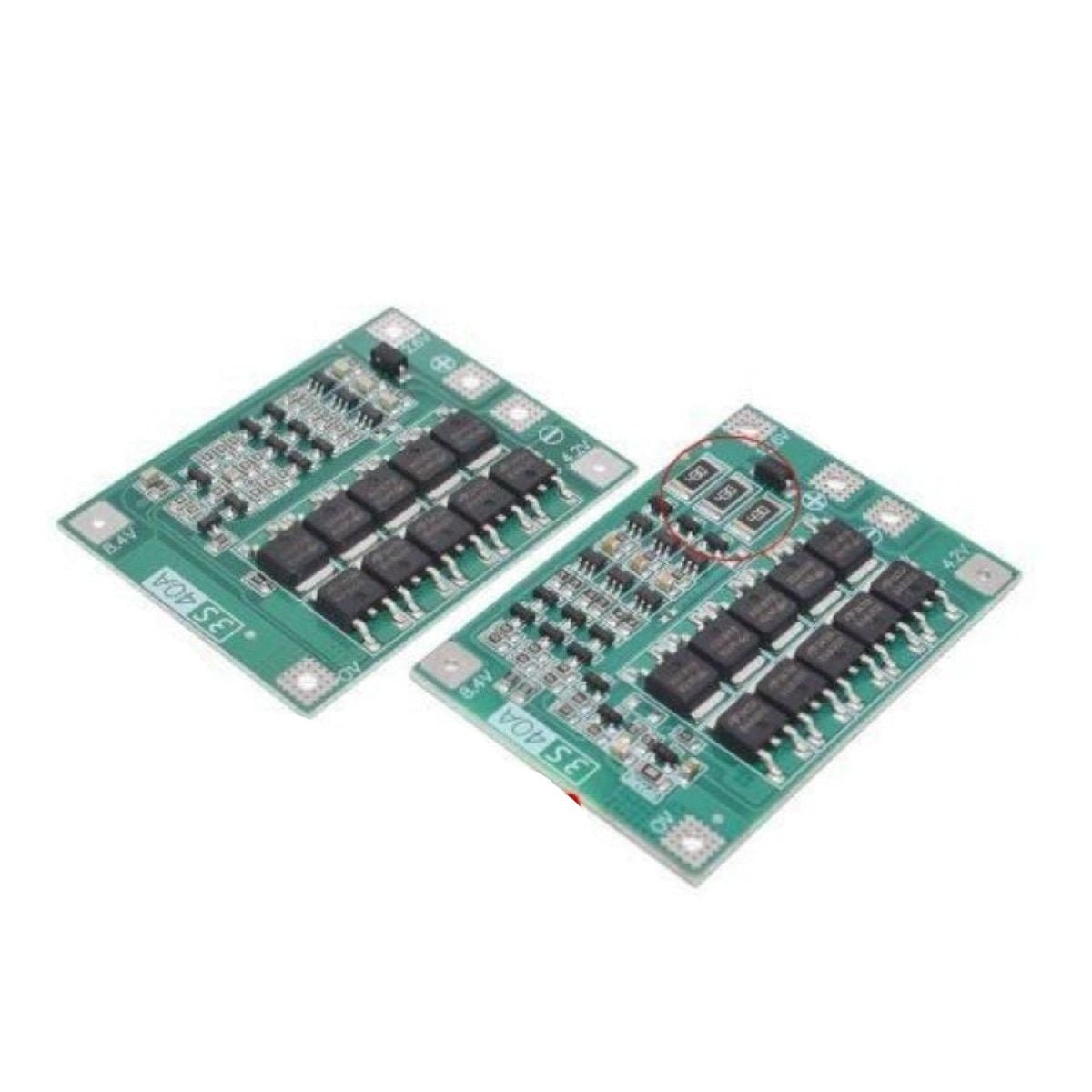

  • Choose enhanced or balancedversion.

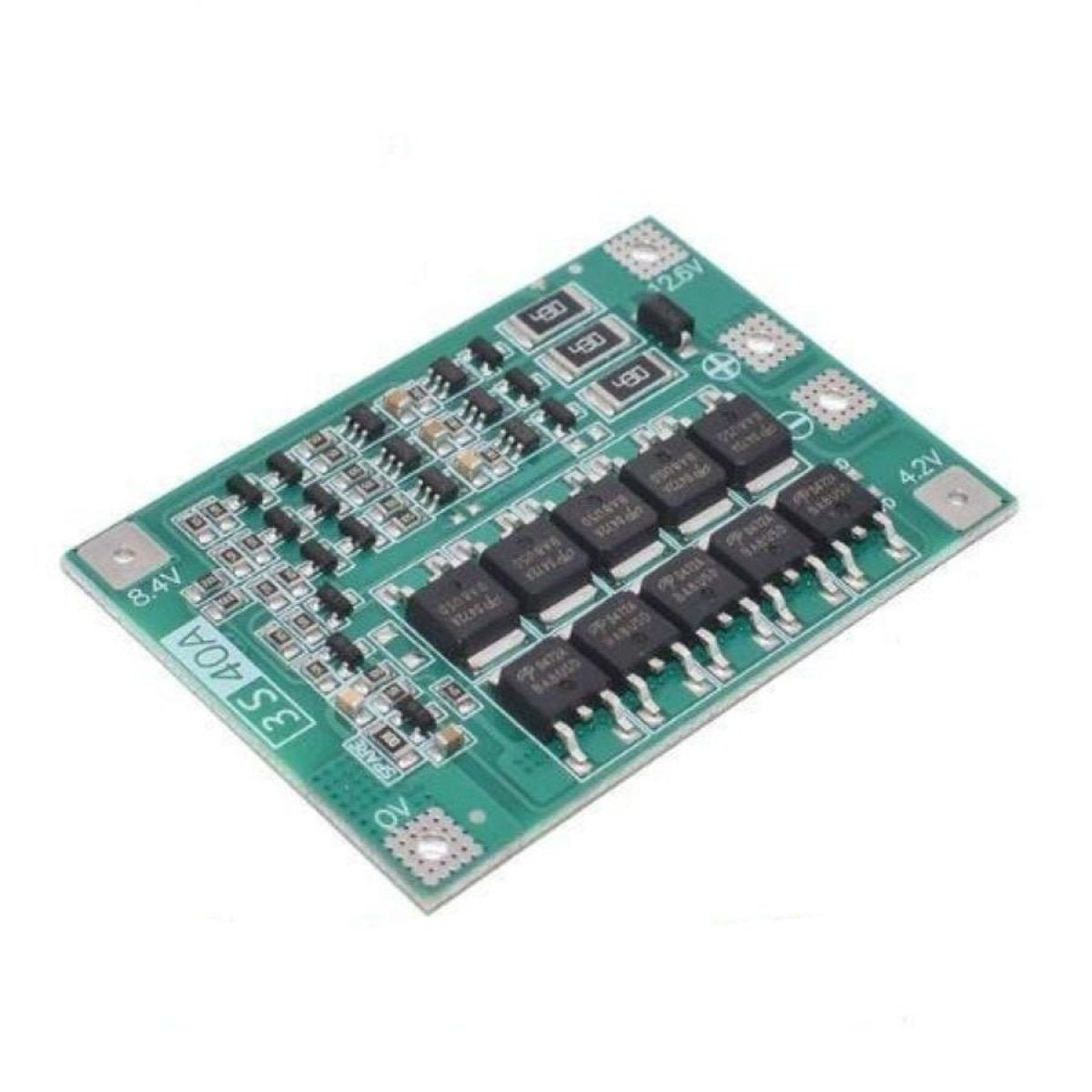

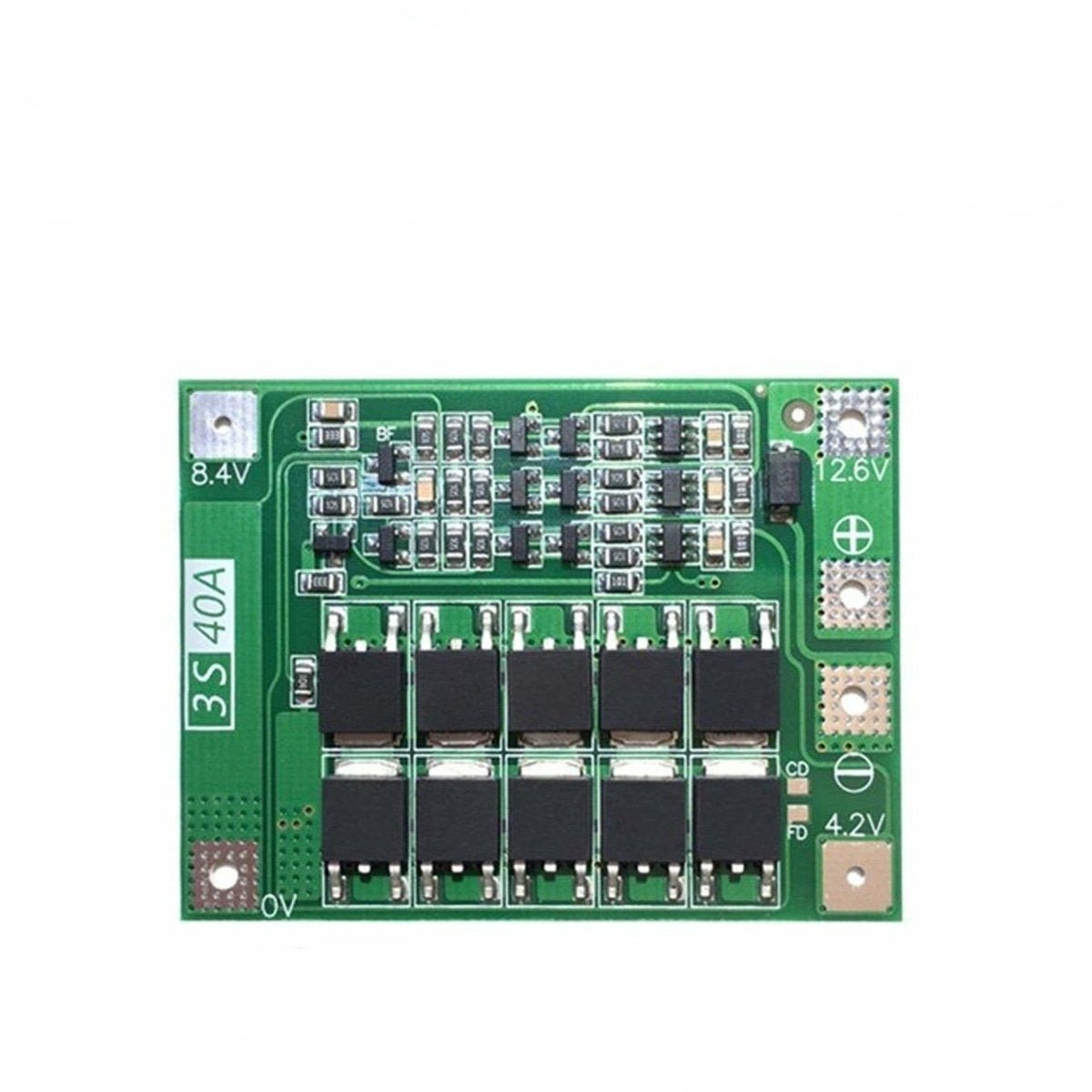

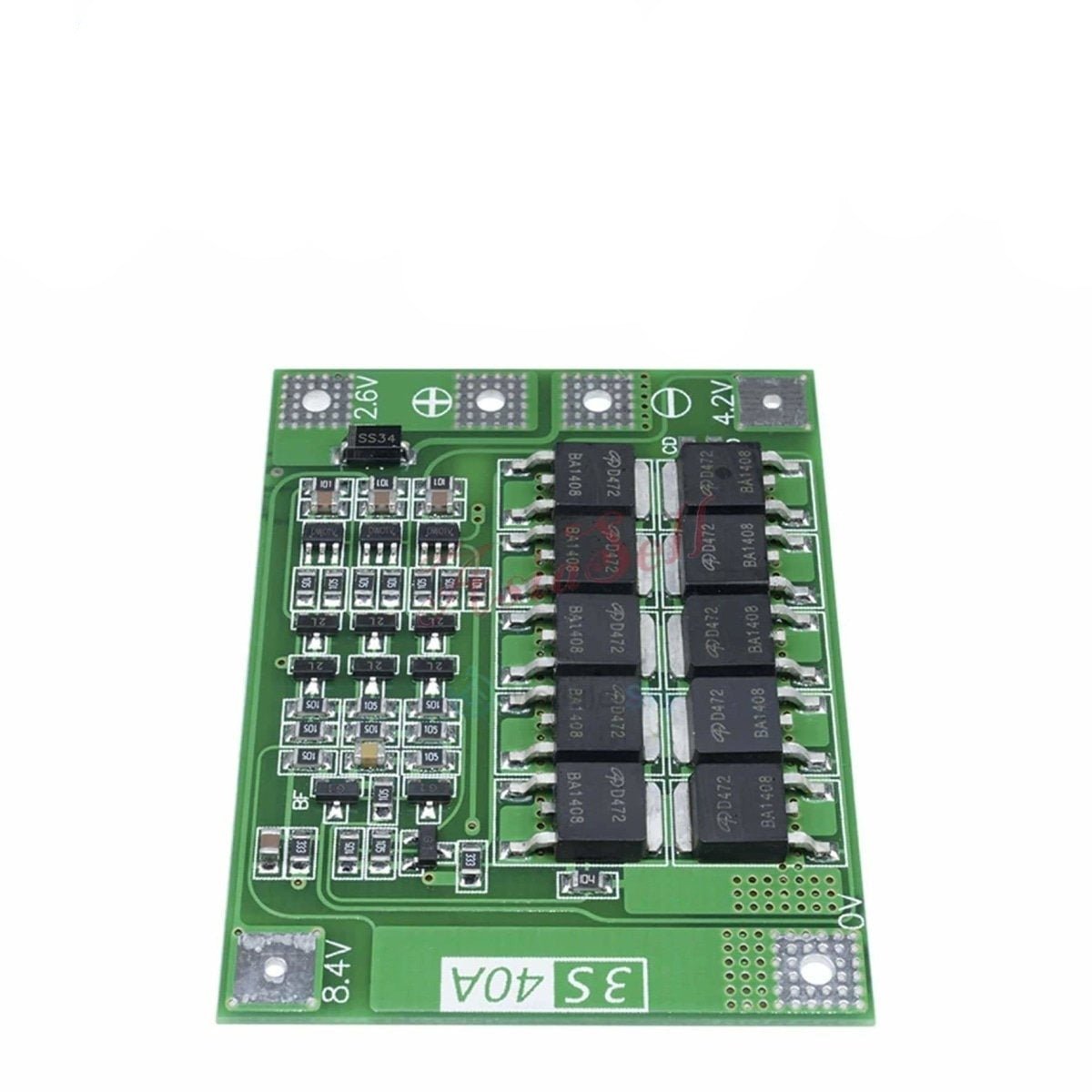

  • 3S 12.6V 40A lithium battery protection board (comes with recovery function-AUTO Recovery).
  • Scope: Nominal voltage of 3.7V lithium battery (including 18650, 26650, polymer lithium battery).
  • Product Size: 41 * 55 * 3.4mm (Enhanced Version), 41 * 60 * 3.4mm (Balanced version).
  • Product weight: 8.8g (enhanced version), 9.8g (balanced version).
  • Charging voltage: 12.6V - 13.6V.
  • Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current ).
  • Continuous charge current (upper limit): 20A.
  • Enhanced version: Suitable for electric drill with starting current below 80A and power below 130W (without balanced function).
  • Balanced version: Suitable for electric drill with starting current below 80A and power below 170W (with balanced charging function).

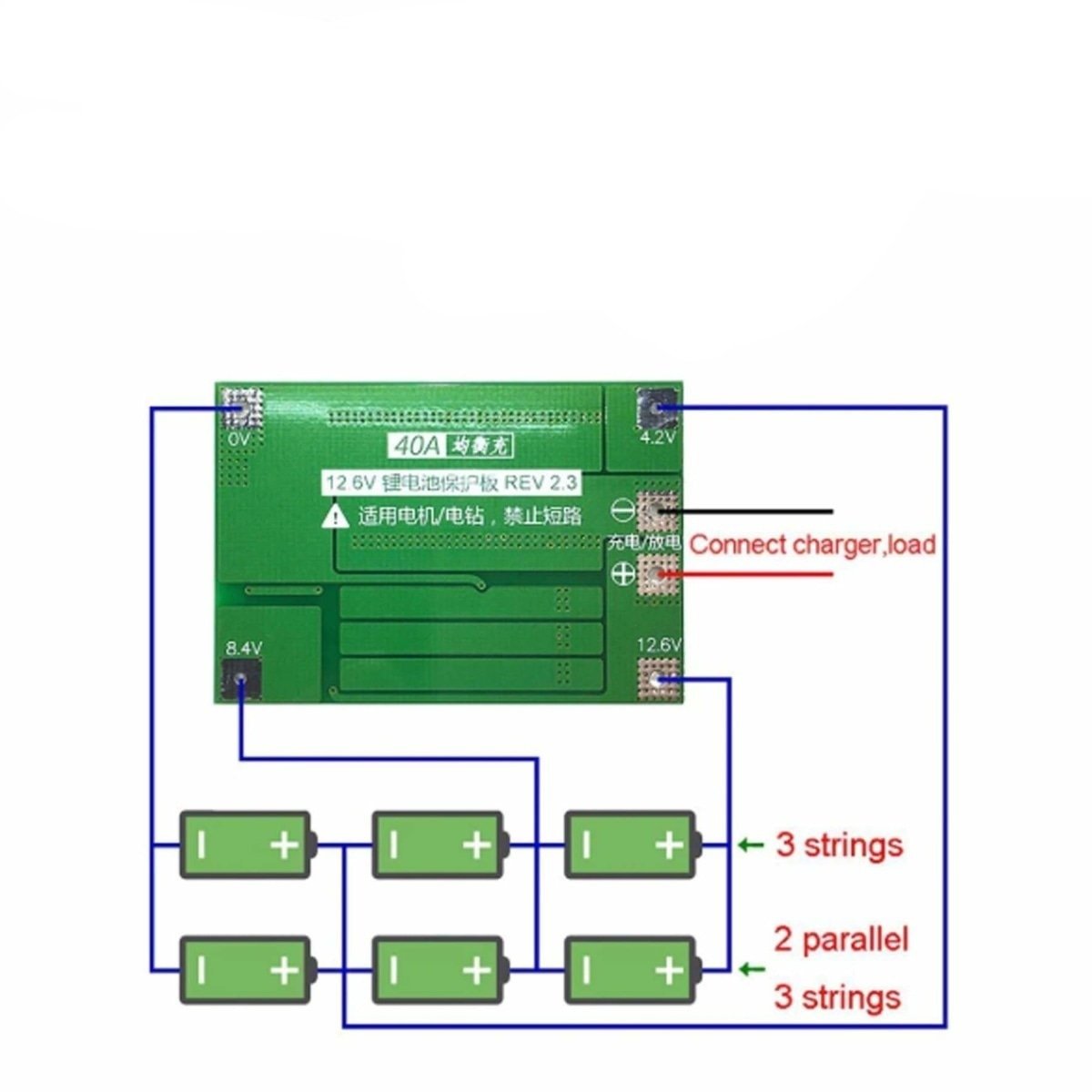

  • Successfully starting the drill requires three 15C-20C power batteries, or six 10C-15C power batteries (ordinary 18650 battery can not start the drill!!). When wiring 0V, 4.2V, 8.4V, 12.6V, please do it strictly according to the wiring diagram. Do not deliberately make it short circuit.
  • When the battery is charging, the "430" resistance heating is normal, it means the balance circuit is working. If the "430" resistance is also heating without charging, please check if the wiring.
  • Do not use a mix of good and bad batteries.
  • Please make sure each battery is the same capacity and internal resistance. The closer the 3 batteries are in capacity and resistance the better.
