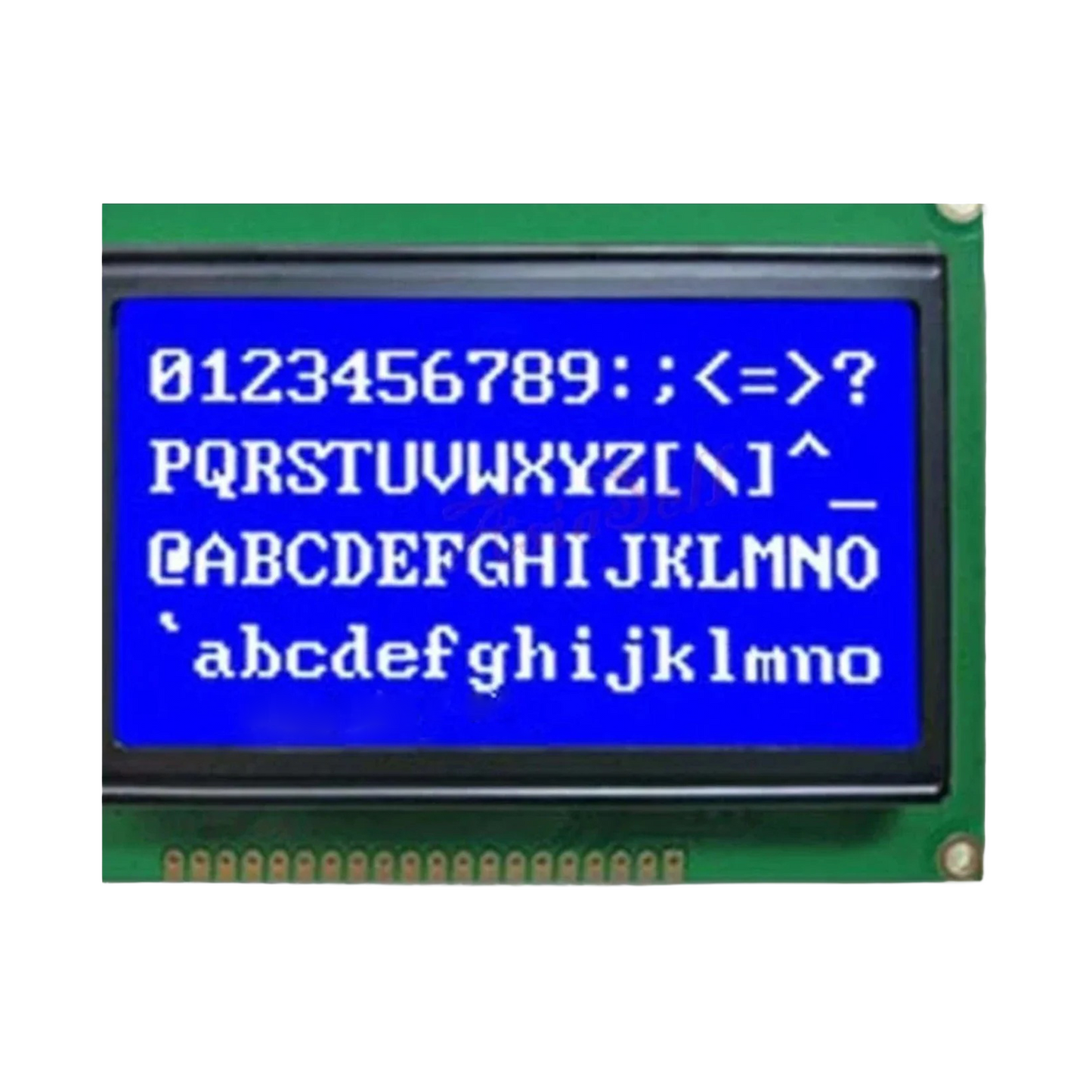

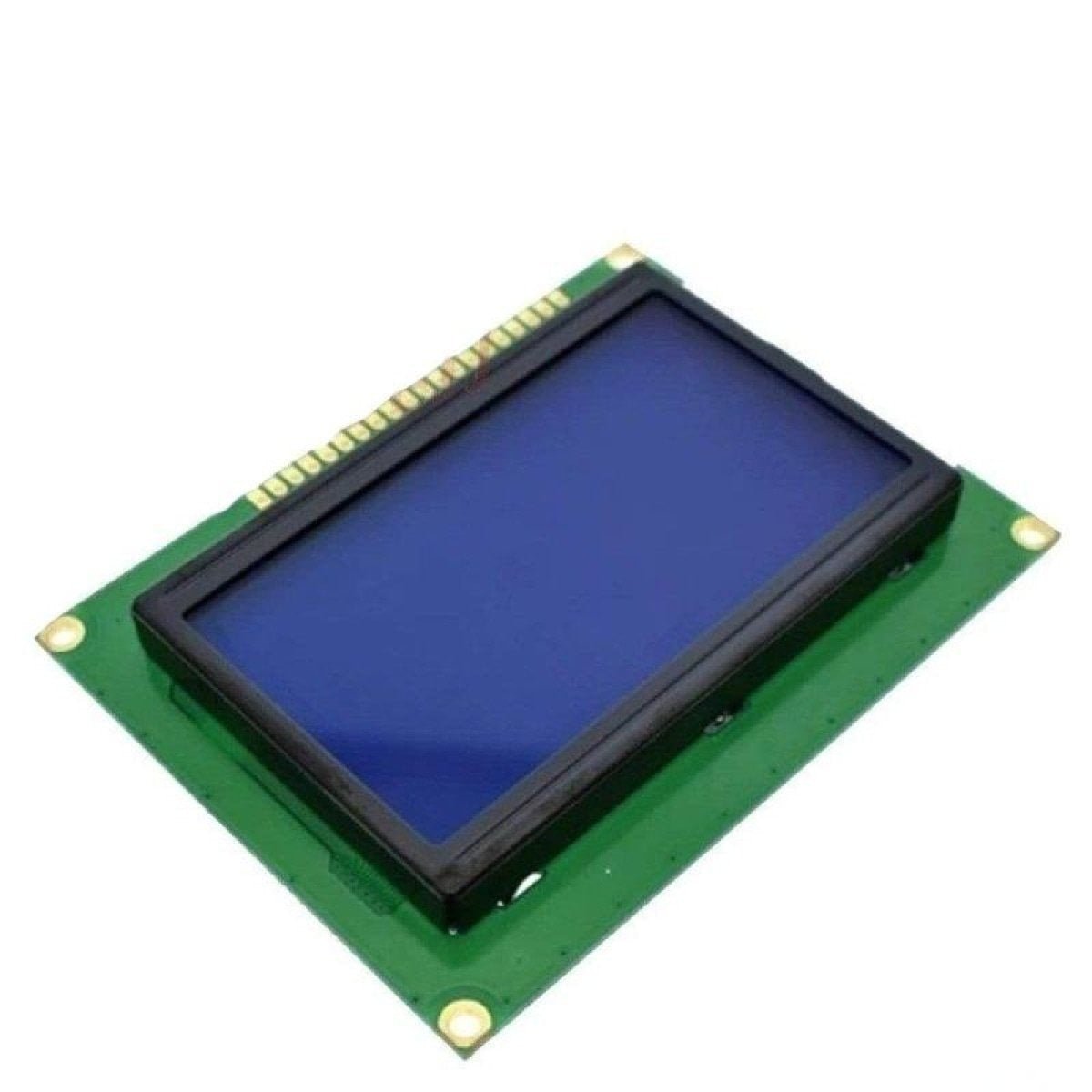

12864 Dots Graphic Blue Yellow Green Backlight 128x64 LCD Display Module

12864 Dots Graphic Blue Yellow Green Backlight 128x64 LCD Display Module

SKU:DISP1063Bz5u4p20

Regular price $12.00 USD
Regular price $14.00 USD Sale price $12.00 USD
PRICE REDUCED Sold out
Tax included. Shipping calculated at checkout.

The product description and related items are below the Add to cart and Buy it now buttons.

Colour

6 in stock

  • 1 Piece Blue or Yellow/Green backlight (choose above).
  • 12864 Dots Graphic Blue Yellow Green Backlight 128x64 LCD Display Module.
  • Fully assembled and tested LCD 128x64 Module.
  • Single row parallel port.
  • Display Format: 20 Characters x 4 lines.
  • Note: We also stock Serial Board Module Port IIC/I2C/TWI/SPI Interface Module 1602 LCD Display.
  • Wiring Instructions (see 3rd image)... The board has 20 solder pads, and the I2C module (purchase separately) is 16 pins. Pins 1 to 14, I2C of the module are connected to the first 14 pins of the screen (as pictured), and 15 and 16 pins of the I2C module are connected to 19 and 20 pins of the screen, respectively. If you only see the backlight, then please adjust contract to see characters
