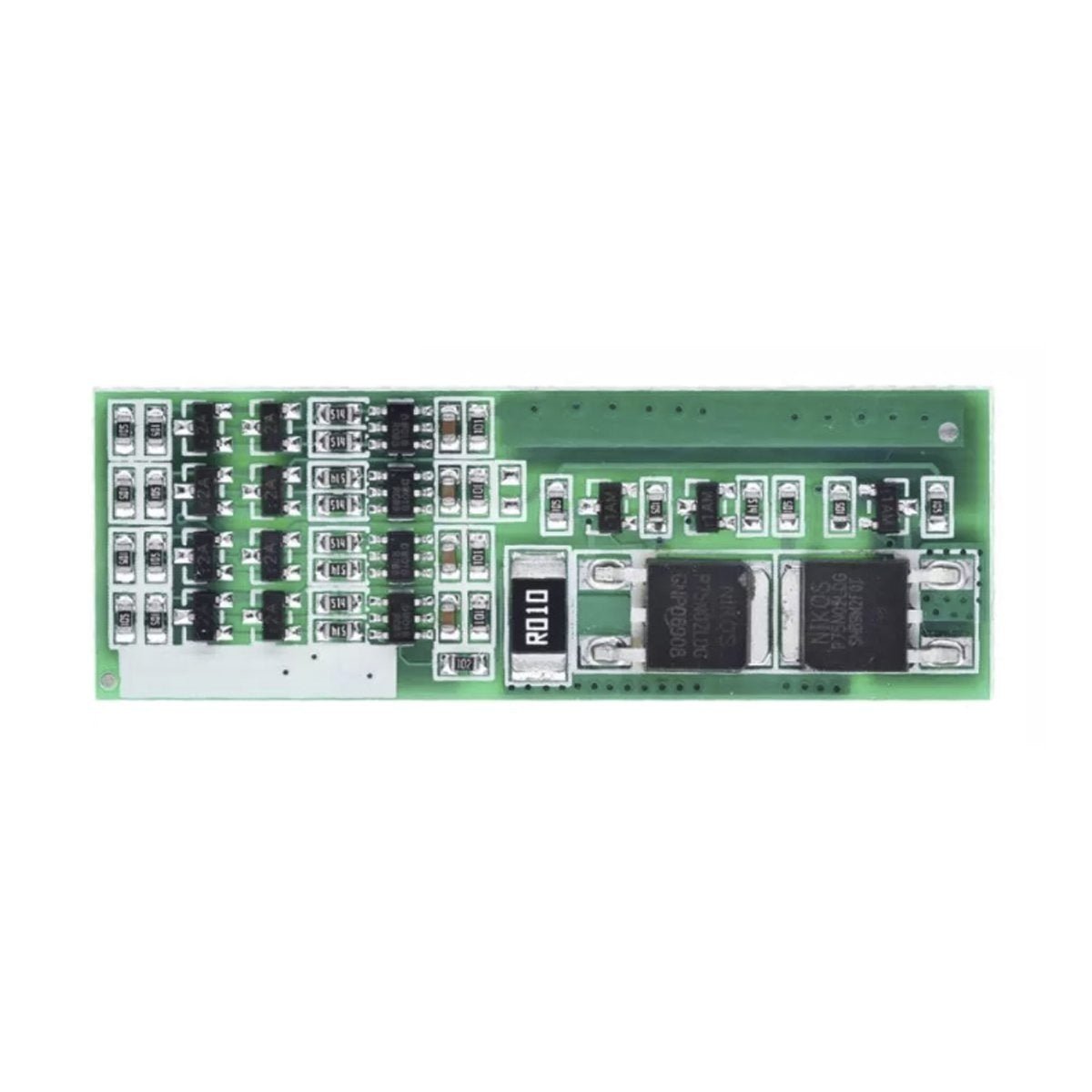

4S 8A Polymer Li-ion Lithium Battery Charger Protection Board For 4 Serial 3.7 Li-ion Charging Protect Module BMS

4S 8A Polymer Li-ion Lithium Battery Charger Protection Board For 4 Serial 3.7 Li-ion Charging Protect Module BMS

CHAR1069

$13.10 AUD
$13.50 AUD $13.10 AUD
PRICE REDUCED Sold out
Tax included. Shipping calculated at checkout.

The product description and related items are below the Add to cart and Buy it now buttons.

4 in stock
  • 1 piece.
  • 4S 8A Polymer Li-ion Lithium Battery Charger Protection Board For 4 Serial 3.7 Li-ion Charging Protect Module BMS,
  1. Model:4 serial 14.8V 8A protection board
  2. Size:18*53*3mm
  3. Operating Current:0.5A-8A
  4. Overcharging Protection Voltage:single cell 4.20V+/-0.025V
  5. Overdischarging Protection Voltage:single cell 2.50V+/-0.1V
  6. Short Circuit Protection:yes
  7. Application Fits:3.7V cell/4 serial
  8. Load Power:<DC 12-16V 90W


Notice:

  1. First solder B-,then solder B1+,to B2+;next B3+,finally solder B+
  2. Output port P-,P+,the soldering sequence is casual
  3. When soldering protection board, the heating time between soldering iron and protection board should not be too long (less than 2 seconds).
