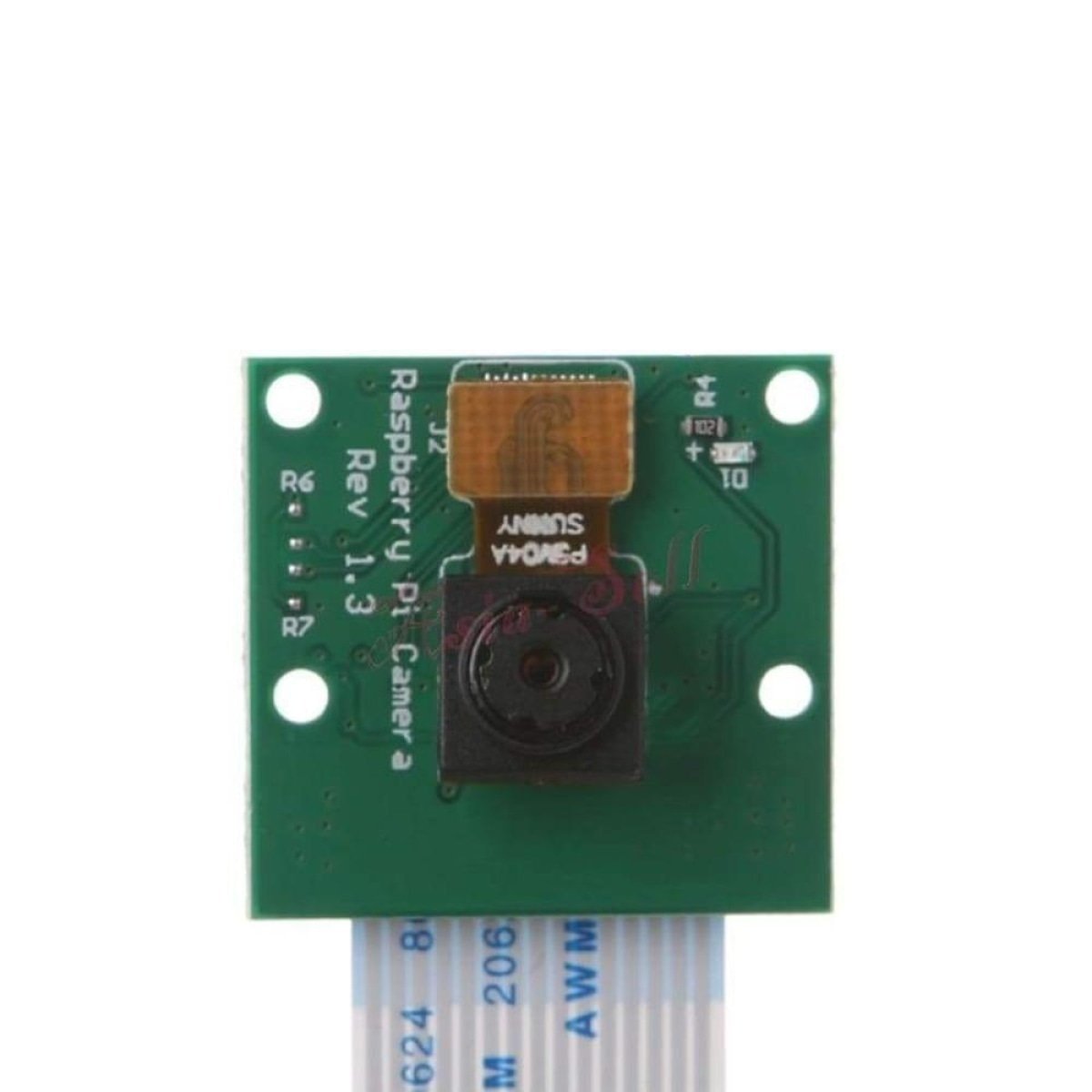

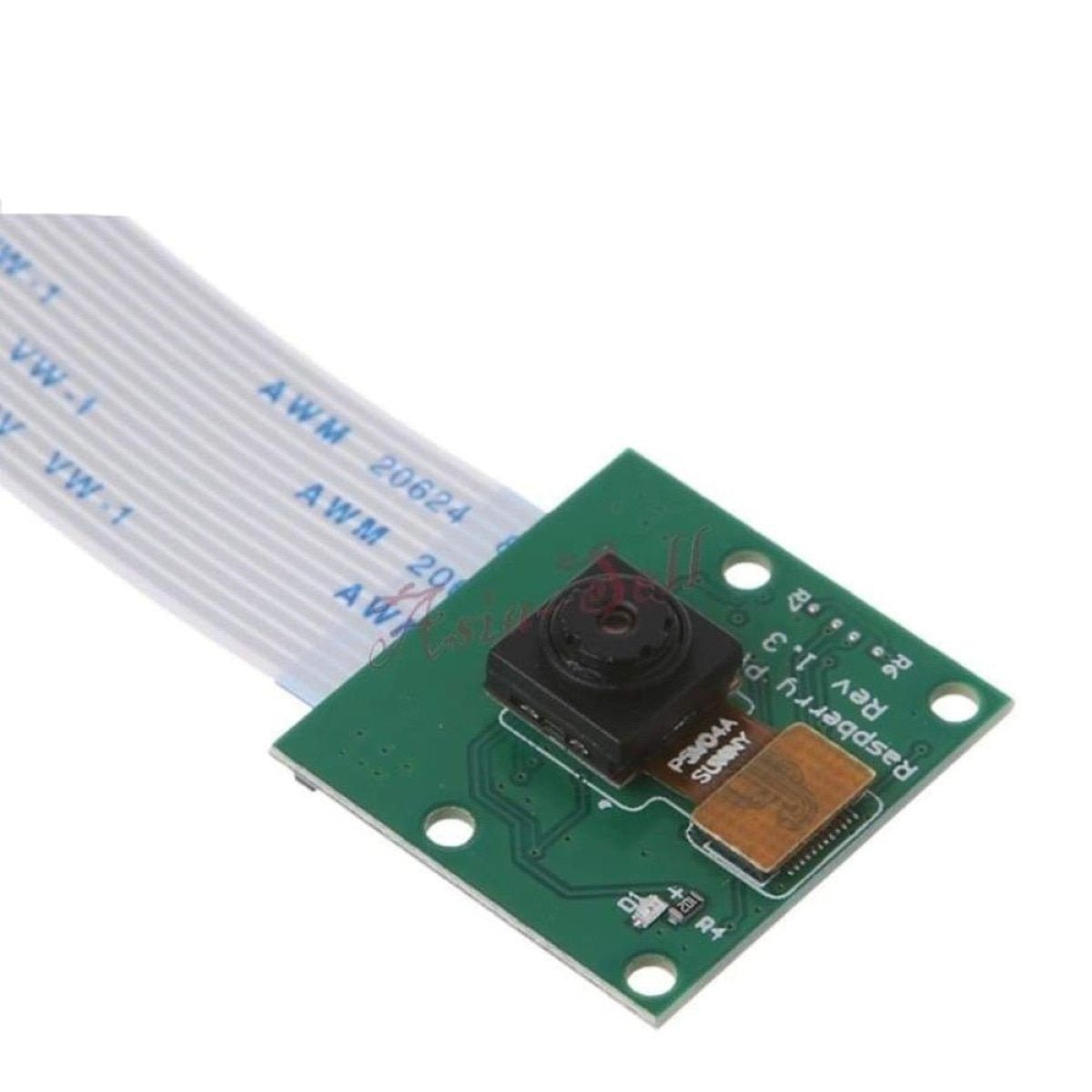

5MP Camera Module + Flex Cable Webcam Video 1080/720p Raspberry Pi 2/3/Model B

Regular price $13.00 AUD
Regular price Sale price $13.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
  • 1 pieces Camera Module.
  • 1 pieces Flex Cable For Raspberry Pi.
  • 5MP Camera Module + Flex Cable Webcam Video 1080/720p Raspberry Pi 2/3/Model B.
  • Shot: 1/4 5M.
  • Aperture: 2.9.
  • focal length: 3.29.
  • FOV: 72.4.
  • Sensor type: OmniVision OV5647 Colour CMOS QSXGA (5-megapixel).
  • Sensor size: 3.67 x 2.74 mm (1/4" format).
  • Pixel Count: 2592 x 1944.
  • Pixel Size: 1.4 x 1.4 um.
  • Lens: f=3.6 mm, f/2.9.
  • Angle of View: 54 x 41 degrees.
  • Field of View: 2.0 x 1.33 m at 2 m.
  • Full-frame SLR lens equivalent: 35 mm.
  • Fixed Focus: 1 m to infinity.
  • Video: 1080p at 30 fps with codec H.264 (AVC).
  • Up to 90 fps Video at VGA.

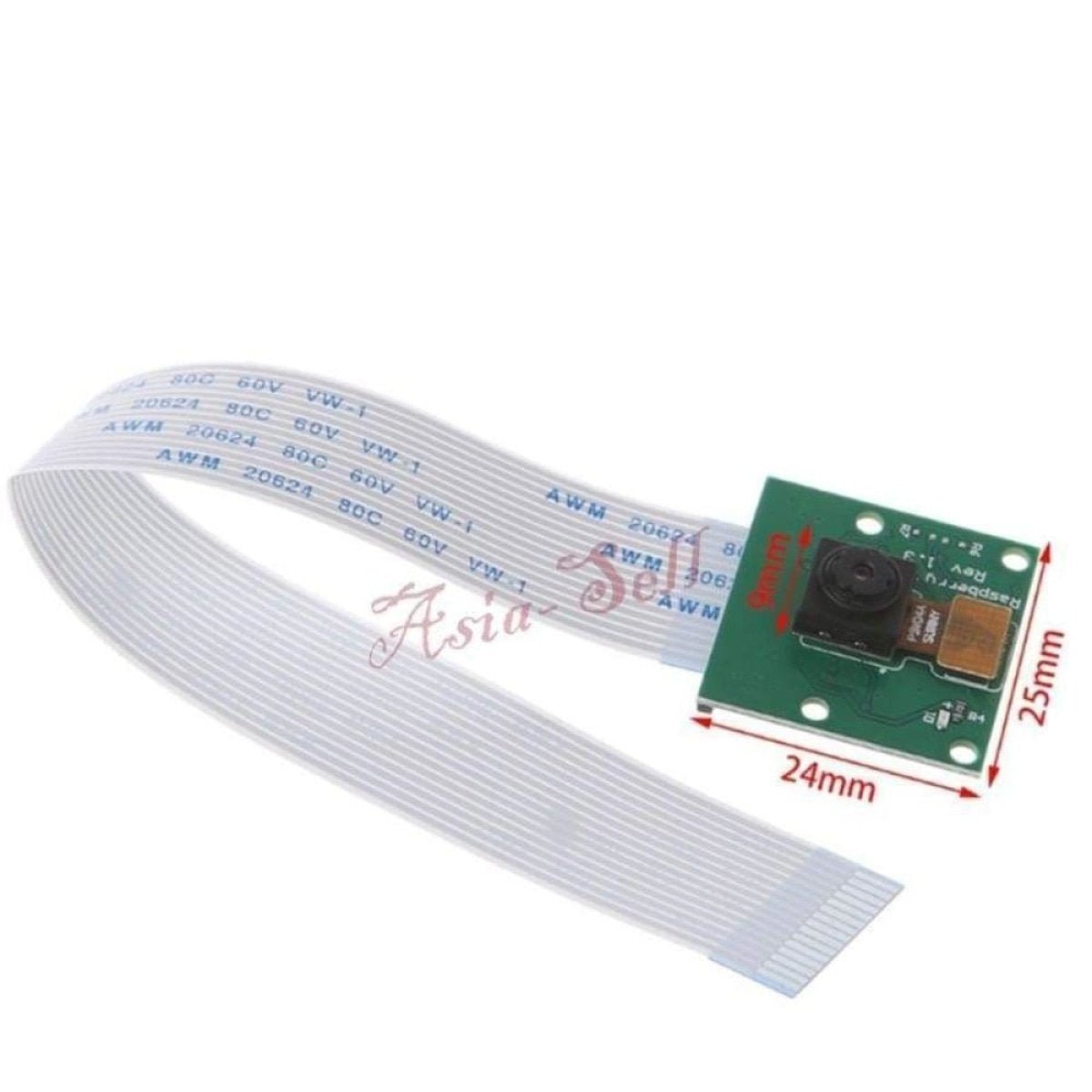

  • Board size: 25 x 24 mm (not including flex cable).
  • Because the focal length of the lens is roughly the same as the width of the sensor, it is easy to remember the field of view: at x meters away, you can see about x meters horizontally, assuming 4x3 stills mode. Horizontal field of view in 1080p video mode is 75% of that (75% H x 55% V sensor crop for 1:1 pixels at 1920x1080).
  • References: Focal length and f-stop measurements, depth of field & angle of view calculators sensor info f-stop measurement.
  • Board Size: 25mmx24mmx9mm/0.98in�������������������������������������������������������0.94in�������������������������������������������������������0.35in (Approx.).

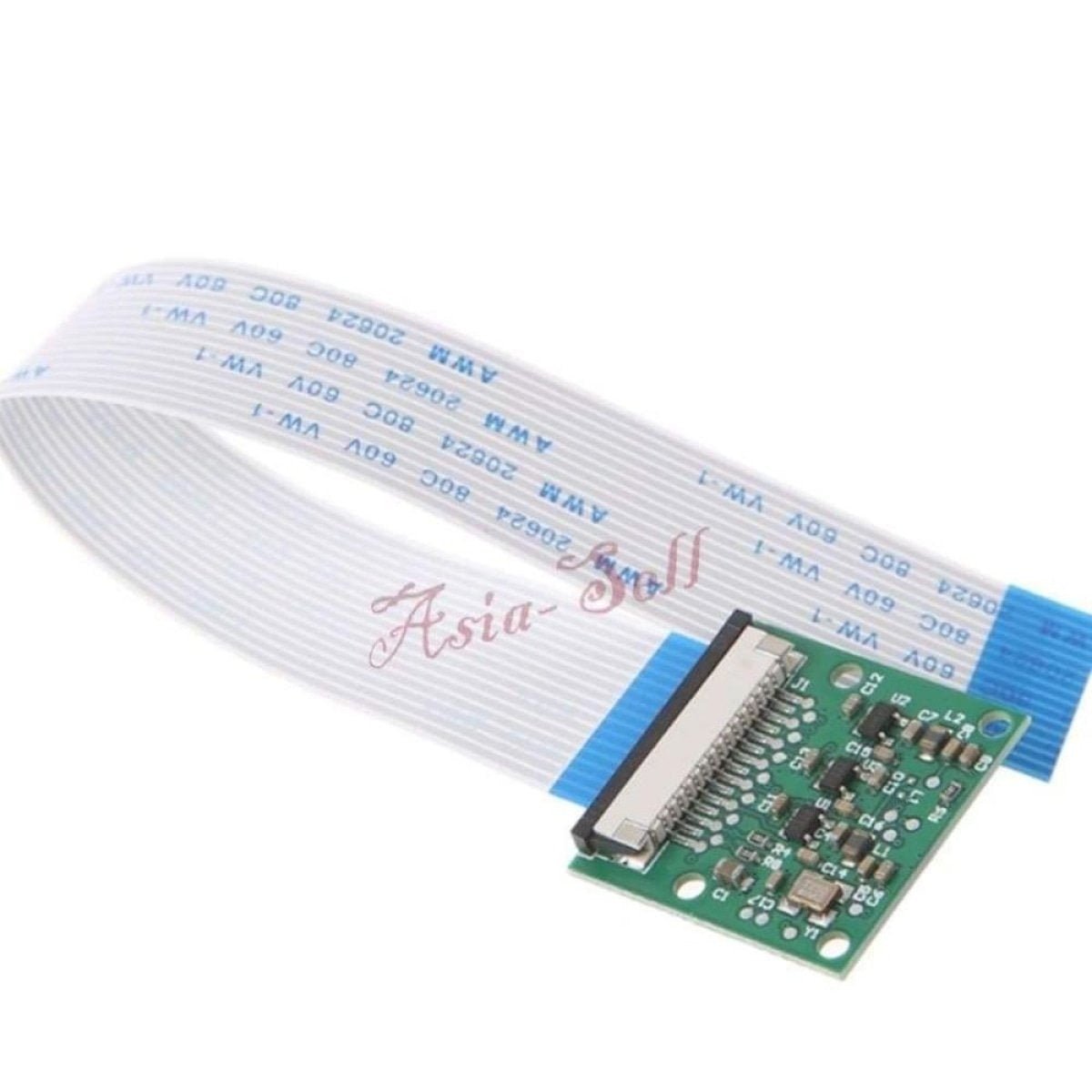

  • Flex Cable Length: 15cm (5.91in).
