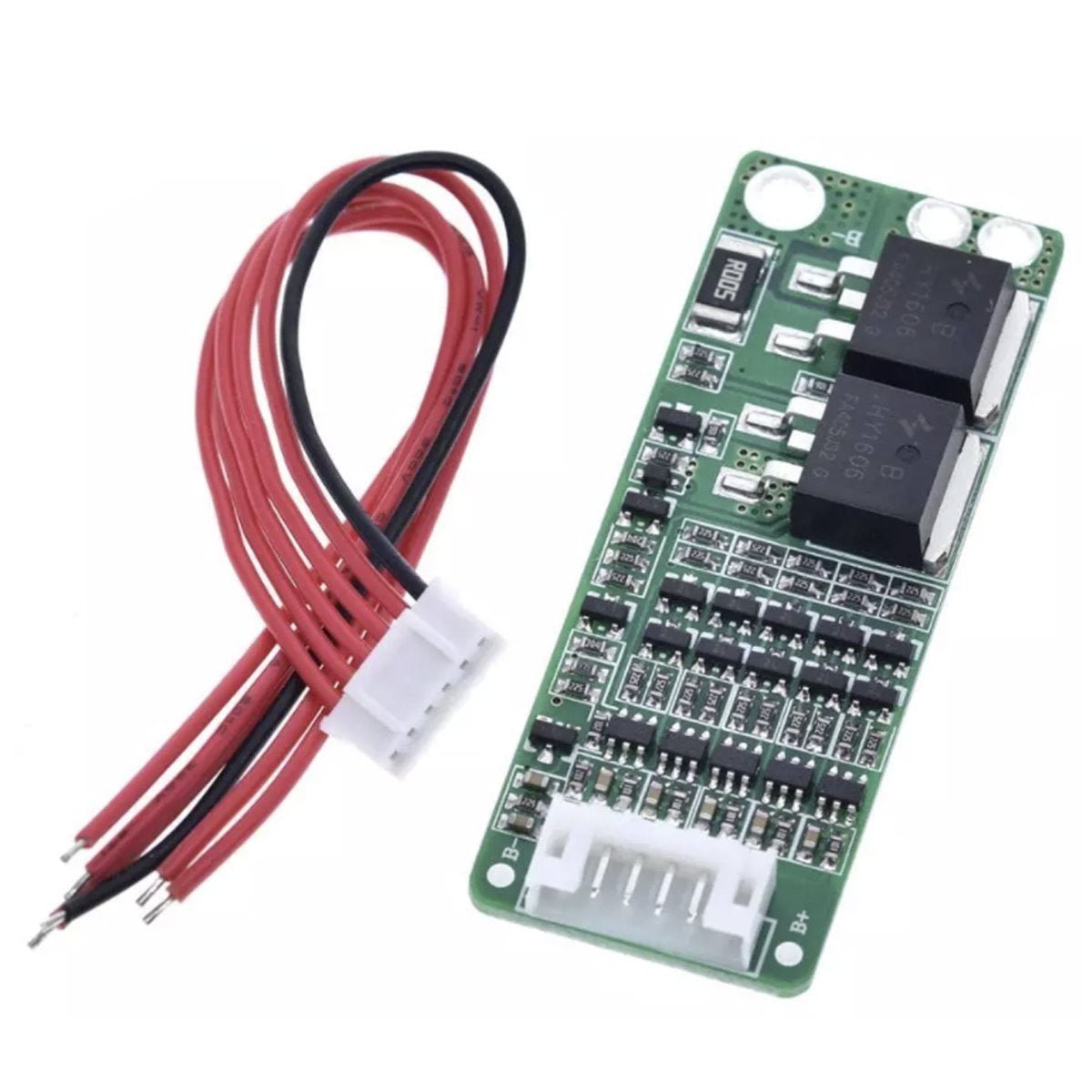

5S 15A Li-ion Lithium Battery BMS 18650 Charger Protection Board 18V 21V Cell Protection Circuit

5S 15A Li-ion Lithium Battery BMS 18650 Charger Protection Board 18V 21V Cell Protection Circuit

CHAR1068z75u1p5

$15.55 AUD
$16.00 AUD $15.55 AUD
PRICE REDUCED Sold out
Tax included. Shipping calculated at checkout.

The product description and related items are below the Add to cart and Buy it now buttons.

Low stock: 3 left
  • 1 piece protection board
  • Note: the cable colour scheme may differ
  • Size: approx. 60*23mm
  • Charging voltage: 21 V
  • Charge MOS pressure value: 35 V
  • Discharge MOS pressure value: 35 V
  • Charging current: 56 A
  • Continuous discharge current: 15 A
  • Over current protection: 50/55/60 A
  • Over current protection delay: 20/25/30mS
  • Single section since the power consumption: 30uA
  • Single section between the power consumption: 3uA
  • Single section over charge detection voltage: 4.18- /4.22V
  • Over charge recovery voltage 4.05- 4.15 V
  • Over charge detection delay: 0.5/1.0/2.0S
  • Single section over discharge detection voltage: 2.75-2.85 V
  • Over discharge recovery voltage: 2.90-3.20 V
  • Over discharge detection delay: 0.5-2.0S
  • Short / over / over current protection recovery short circuit / over discharge / over current protection after removal of load auto recovery
  • Short circuit protection delay 200/500/600uS
  • The normal working state of B- to P- resistance: 5m���
  • Continuous 15A current maximum temperature rise: 25 �
  • Working environment (humidity) relative humidity: ����98% (long-term stability under the humidity)
  • Working environment (temperature) -30 ~ 80�(in the lower temperature range of long-term stability)
