5x Each 5mm 12V Wired LEDs Cables + Panel Mount Bezels White Blue Green UV Red Yellow Pink LED

5x Each 5mm 12V Wired LEDs Cables + Panel Mount Bezels White Blue Green UV Red Yellow Pink LED

SKU:LED1151C

Regular price $10.00 AUD
Regular price Sale price $10.00 AUD
PRICE REDUCED Sold out
Tax included. Shipping calculated at checkout.

The product description and related items are below the Add to cart and Buy it now buttons.

Colour

5 in stock

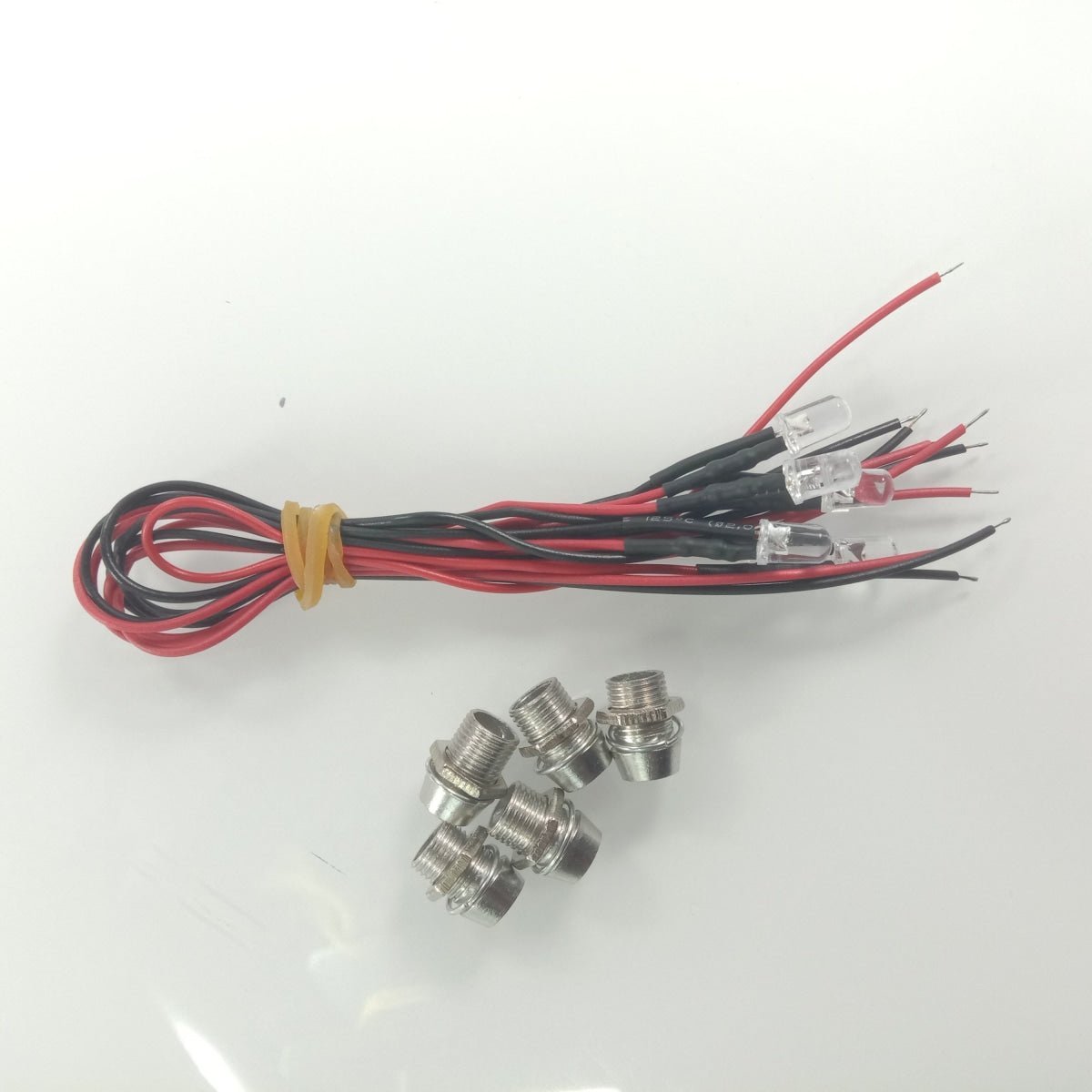

  • 5 pieces wired LEDs.
  • 5 pieces metal LED holders/bezels/surrounds.
  • 5mm 12V Wired LEDs Metal Holder Bezel White Blue Green UV Red Yellow Pink LED.
  • Round Through-Hole 12V Wired LEDs 5mm.
  • 8000MCD brightness.
  • Transparent LED shell means no filtering of certain shades, which allows more light to pass.
  • The slow flash RGB change colour every 4 seconds. The flash flash RGB change colour every 1 second at first, then rapidly and the cycle repeats.
  • Cable length 20cm.
  • Note: plastic inserts are not required (and can't be used) when using these surrounds with wired LEDs. Plastic inserts can be used for non-wired LEDs and we supply them when purchasing bezels on their own. If you want some plastic inserts as well then please let us know.
  • Thread diameter (width below rim): 7.6mm. The hole needs to be this size or larger but not larger than the rim diameter.
  • Rim diameter: 9.0mm approx.
  • Please note: we also stock the wired LEDs with black plastic bezels or without bezels.

Two ways to insert LED:

  • 1/ For a slight protrusion of the LED past the casing: Insert the LED through the front of the holder, gently squeezing the resistor through.
  • 2/ For the LED to be inside the casing: Insert the wired LEDs into the holder from the base.
  • Either way, the LED pushes into a loosely fixed position. Optional, add hot glue or cement to avoid the LED being pushed in or pulled out. Wipe off the excess before it sets to allow for proper mounting. Note that this would be unlikely due to the tiny size of the led and holder. Message us if you would like it done for a fee.
  • Note: In the pictures the white LED is powered on just 2x1.5V batteries.
  • Note: We may have more than the listed quantities in stock. Please ask.
  • Note: The UV LEDs emit UV radiation and some purple colour. Use eyewear with a UV filter.
  • Note: plastic inserts are not required (and can't be used) when using these surrounds with wired LEDs. Plastic inserts can be used for non-wired LEDs and we supply them when purchasing bezels on their own.
