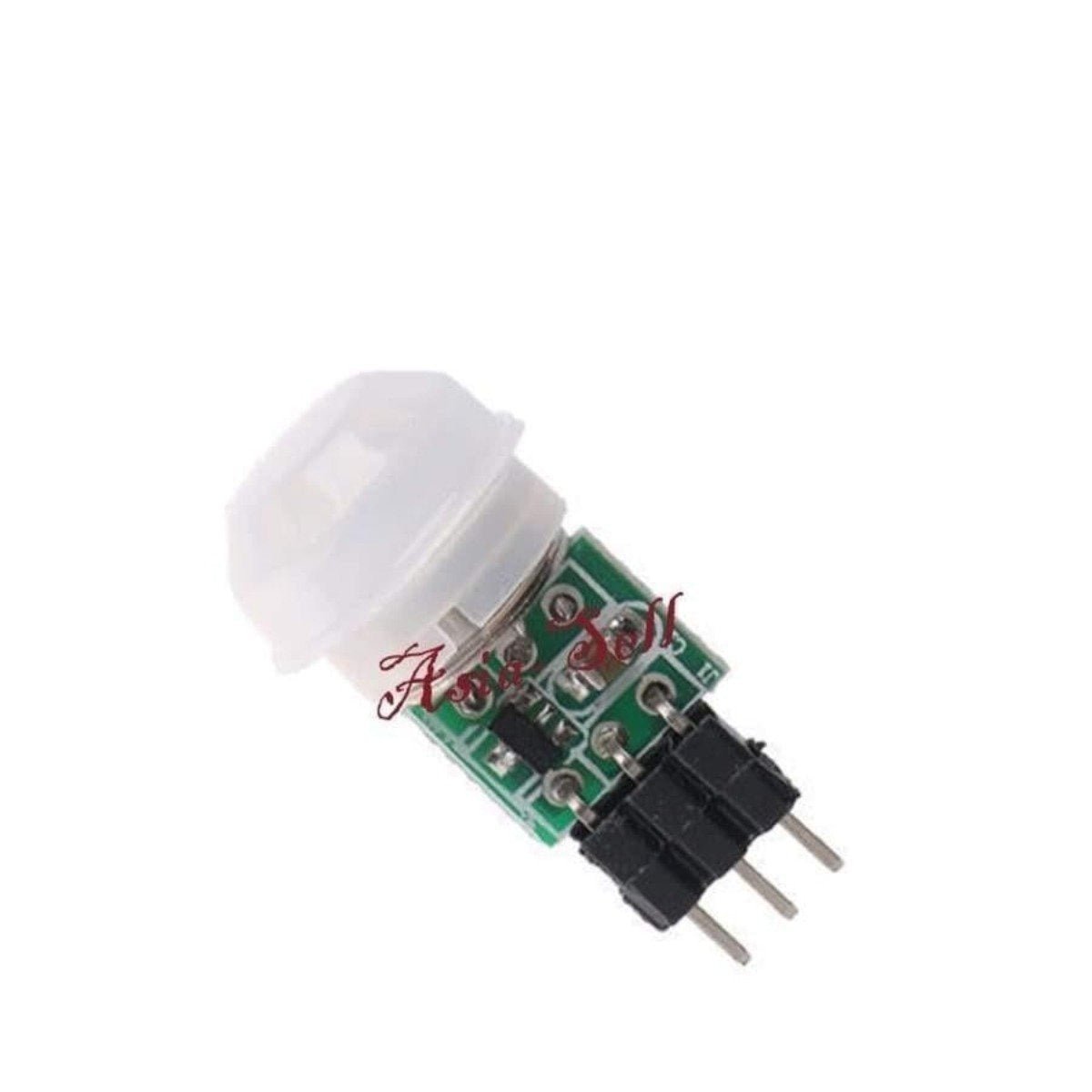

AM312 PIR Motion Body Human Sensor Mini IR Infrared Pyroelectric Detector Module

AM312 PIR Motion Body Human Sensor Mini IR Infrared Pyroelectric Detector Module

PIR1050

$7.60 AUD
$7.80 AUD $7.60 AUD
PRICE REDUCED Sold out
Tax included. Shipping calculated at checkout.

The product description and related items are below the Add to cart and Buy it now buttons.

20 in stock
  • 1 Piece.
  • AM312 PIR Motion Body Human Sensor Mini IR Infrared Pyroelectric Detector Module.
  • Immunity enhancement, internal use of digital signal processing, direct high-low output.
  • Repeatable trigger: the sensor output high after, the delay periodIf there is human activity in its sensing range, the output will remain high until the people left after the delay, it becomes low (ie: sensor module detects the human body every activity will be automatically extended a period of time delay, and to the last activity time as the starting point of the delay time).

Specifications

  • Working voltage: DC 3V-12V.
  • Static power consumption: <0.1mA.
  • Delay time: 2 seconds.
  • The blocking time: 2 seconds.
  • Trigger: Can be repeated.
  • Working temperature: -20 - + 60 degree.
  • Product size: about(L*Dia.) 2.4* 1cm/0.94*0.39inch.
  • No Retail Packages.
  • Technical datasheet manual can be found at http://unusualelectronics.co.uk/wordpress/wp-content/uploads/Pir-AS312.pd.
