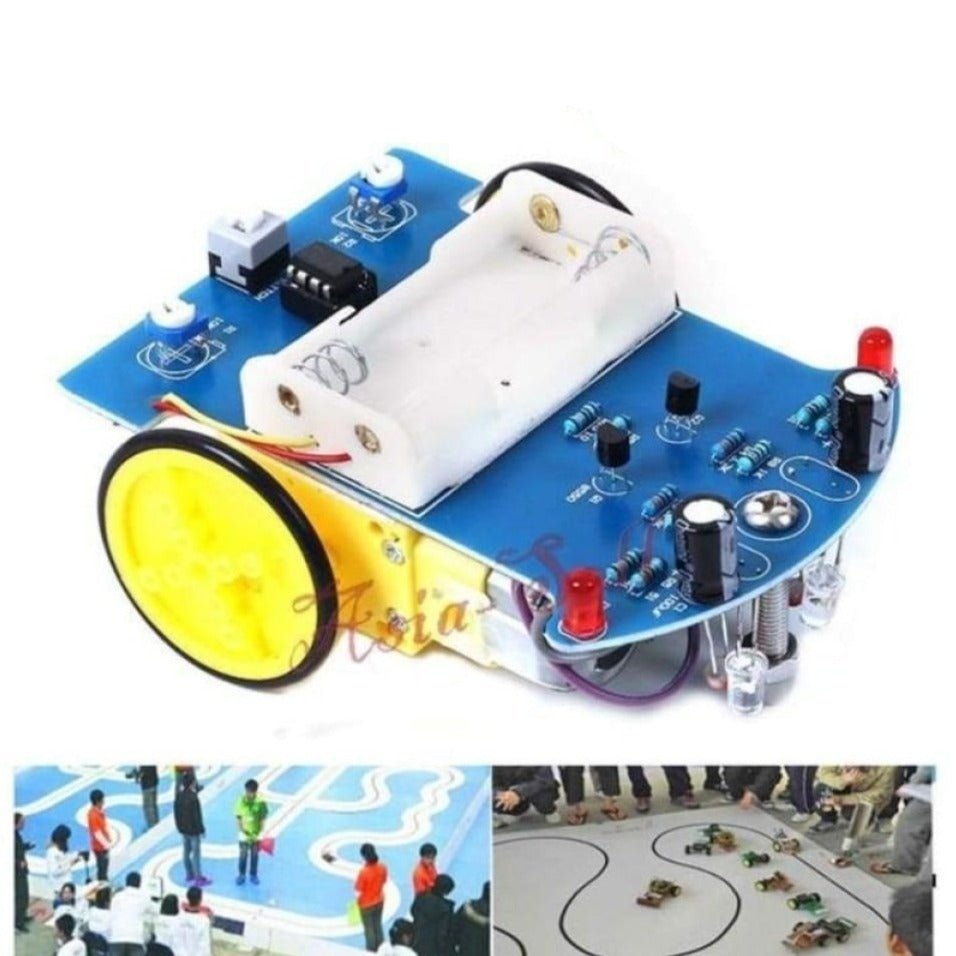

Line Following Smart Car Kit Motor Electronic DIY Kit Set Line Follower Learning Toy

• 1 Kit.
• Line Following Smart Car Kit Motor Electronic DIY Kit Set Line Follower DIY build.
• There is a paper included with the kit that has 16 mm wide guidance track. The line following guidance system can follow the black line automatically.
• Light is emitted from the car and reflects off the white track and less-so off the black line. There is a sensor on the car which detects the signal strength of the reflection and determines whether the car is off-track and automatically corrects to follow the track.
• You can create your own line around the house.
• The motor will also slow down so that the car can be stable on the black line. This will turn on the red LED as an indication.
• 2 motors are included, those of which are typically used
• To build, simply place the components as per markings on the circuit board and utilise the main image to assist in component placement. There are instructions in Chinese language.
• PCB Size: 105*72*1.6mm.
• Installation dimension: 105*85*46mm.
• Working Voltage: 3V.
• Batteries not included. Soldering iron and solder etc. not included.

Component Specifications
