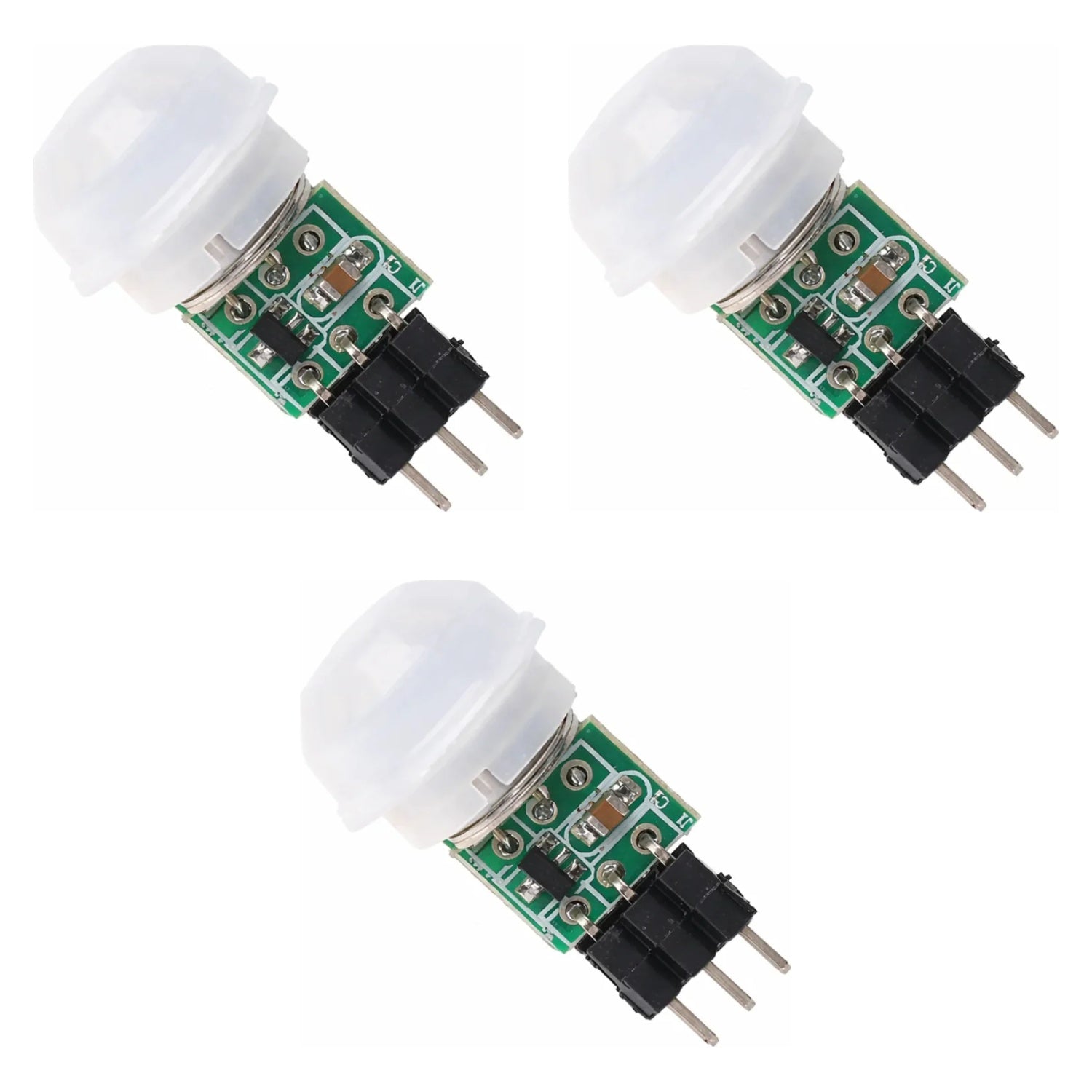

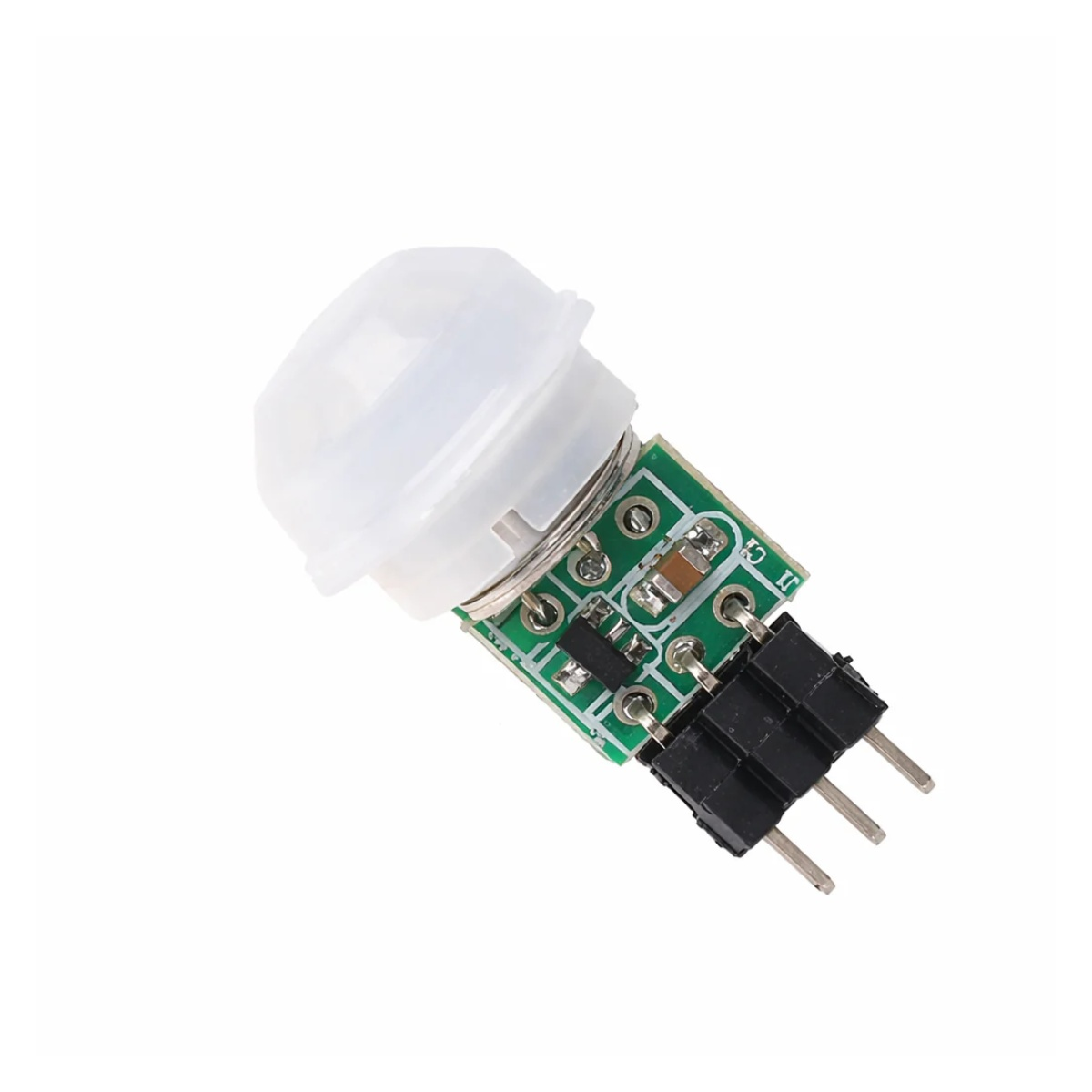

3pcs AM312 PIR Motion Body Human Sensor Mini IR Infrared Pyroelectric Detector - Asia Sell

  • $13.55
Tax included. See the Shipping Rates Table. Calculated at checkout (combined weight and service dependant). Free shipping for orders over $50.
2 in stock More stock is expected after Dec 10. You are welcome to exceed the in-stock quantity.


  • 3 Pieces.
  • AM312 PIR Motion Body Human Sensor Mini IR Infrared Pyroelectric Detector.
  • Immunity enhancement, internal use of digital signal processing, direct high-low output.
  • Repeatable trigger: the sensor output high after, the delay periodIf there is human activity in its sensing range, the output will remain high until the people left after the delay, it becomes low (ie: sensor module detects the human body every activity will be automatically extended a period of time delay, and to the last activity time as the starting point of the delay time).


  • Working voltage: DC 3V-12V.
  • Static power consumption: <0.1mA.
  • Delay time: 2 seconds.
  • The blocking time: 2 seconds.
  • Trigger: Can be repeated.
  • Working temperature: -20 - + 60 degree.
  • Product size: about(L*Dia.) 2.4* 1cm/0.94*0.39inch.
  • Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item.
  • Technical datasheet manual can be found at http://unusualelectronics.co.uk/wordpress/wp-content/uploads/Pir-AS312.pd.
